AxVIEW Rackmount – Subsea Video and Depth Recording System for Commercial Diving
The AXSUB® AxVIEW Rackmount system is designed for Commercial Diving Operations. The AxVIEW Rackmount can be configured as a 1, 2 or 3 diver system and up to 4 divers and 4 hyperbaric chamber sensors can be monitor with one computer. When delivered with an Industrial Rackmount Touch Panel PC, this system represents the second generation of our popular AxDDM Diving Data Management System.
KIT #1 (KIT#1-2V-RM-PAL / KIT#1-2V-RM-NTSC)
- AxVIEW 2V-RM (2-diver System) (1 unit)
- RM-OPT-ITPC12.1-1TB (12.1” Touchscreen Computer with 1 TB SSD) (1 unit)
- RM-OPT-KPT-1U (keyboard)
- AxSEE 57i (Smart Cameras with Depth Sensor – NTSC or PAL version) (2 units)
- AxLIGHT 35 (Dimmable LED Lamps) (2 units)
- BR2K57-316SS (Helmet Bracket Kits) (8 units)
- DC-TERM-115m (115 meters of cable terminated) (2 units)
KIT #2 (KIT#2-2V-RM-PAL / KIT#2-2V-RM-NTSC)
- AxVIEW 2V-RM (2 Divers) (1 unit)
- RM-OPT-ITPC17- 1TB (17” Touchscreen Computer with 1 TB SSD)
- RM-OPT-KPT-1U (keyboard)
- AxSEE 57i (Smart Cameras with Depth Sensor – NTSC or PAL version) (2 units)
- AxLIGHT 35 (Dimmable LED Lamps) (2 units)
- BR2K57-316SS (Helmet Bracket Kits) (8 units)
- DC-TERM-115m (115 meters of cable terminated) (2 units)

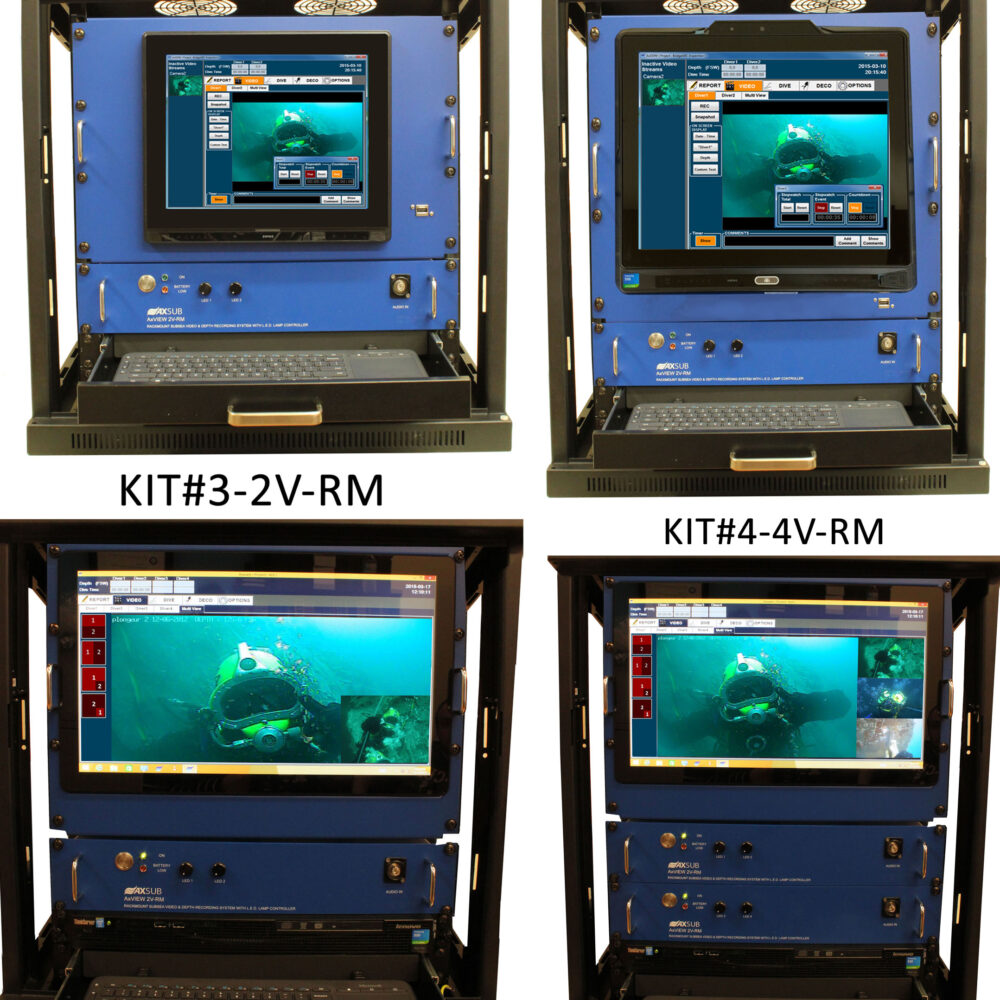

KIT #3 (KIT#3-2V-RM-PAL / KIT#3-2V-RM-NTSC)
- AxVIEW 2V-RM (2-diver System) (1 unit)
- RM-OPT-IPC-IU- 1TB (Rackmount Computer with 1 TB SSD) (1 unit)
- RM-OPT-19TSM-PCAP (19” Touchscreen Monitor) (1 unit)
- AxSEE 57i (Smart Cameras with Depth Sensor – NTSC or PAL version) (2 units)
- AxLIGHT 35 (Dimmable LED Lamps) (2 units)
- BR2K57-316SS (Helmet Bracket Kits) (8 units)
- VDC-TERM-115m (115 meters of cable terminated) (2 units)
- RM-OPT-KPT-1U (keyboard)
KIT #4 (KIT#4-4V-RM-PAL / KIT#4-4V-RM-NTSC)
- AxVIEW 2V-RM (2-diver System – Diver 1 and Diver 2) (1 unit)
- AxVIEW 2V-RM-3/4 (2-diver System – Diver 3 and Diver 4) (1 unit)
- RM-OPT-IPC-1U- 1TB (Rackmount Computer with TTB SSD)
- RM-OPT-19TSM-PCAP (19” Touchscreen Monitor)
- RM-OPT-KPT-1U (keyboard)
- AxSEE 57i (Smart Cameras with Depth Sensor – NTSC or PAL version) (4 units)
- AxLIGHT 35 (Dimmable LED Lamps) (4 units)
- BR2K57-316SS (Helmet Bracket Kits) (8 units)
- VDC-TERM-115m (115 meters of cable terminated) (4 units)
Rackmount Frame Kit is not include. Dual Monitors (RM-OPT-2S07) is not include.
Custom orders are available. Please call us.
Advanced Technology
• Up to 4 divers can be controlled & recorded with one computer system!
• 2U rackmount enclosure & RUGGED components
• Integrated Uninterruptible Power Supply (UPS)
• SAFE Low Voltage Output to the diver (12 & 24VDC)
• Video Outputs and Audio Input to integrate comms into video recordings
Available Options
19’’ Touchscreen LCD Monitor with Rackmount PC
Your AxVIEW RM can be customized with a 19’’ rackmount touchscreen Monitor (8U) and a High Performance Rackmount Computer (1U) that can handle up to 4 divers (RM-OPT-19TSM-PCAP & RM-OPT-IRMC-1TB).
Industrial 17’’ Touch Panel PC
The AxVIEW RM can be purchased with an Industrial Panel Computer (9U) that integrate a 1TB Solid State Drive (RM-OPT-ITPC17-256GB). The product is delivered with our AxDDM software preinstalled & ready for your diving operations.
Dual 7’’ LCD Monitor
A twin 7’’ TFT LCD monitor system (4U) is available to keep an eye on each the divers (RM-OPT-2S07).
Battery Packs
The AxVIEW can be purchase with one or multiple portable 24VDC Lead Acid battery packs: small size with 5 Ah (B05Ah-24VDC) or large size with 15 Ah (B15Ah-24VDC) for 6 hours of continuous operation in case of main’s supply power failure. The computers and monitors are not link to this battery pack – only the AxVIEW System that control LED lamps to the divers.
Decompression Module with DECO Tables and Dive Log Report Module
Our systems can be purchase with the optional DECO Module (SW-DECO-NOTABLE) and add-on specific diving tables to your software: DCIEM, USNAVY, SURDO2, MT92 or your custom diving tables. A dive Customizable Log Report module is also available (SW-LB). Ask our experts about the best solution for your operations!
Custom orders are available. Please call us.
