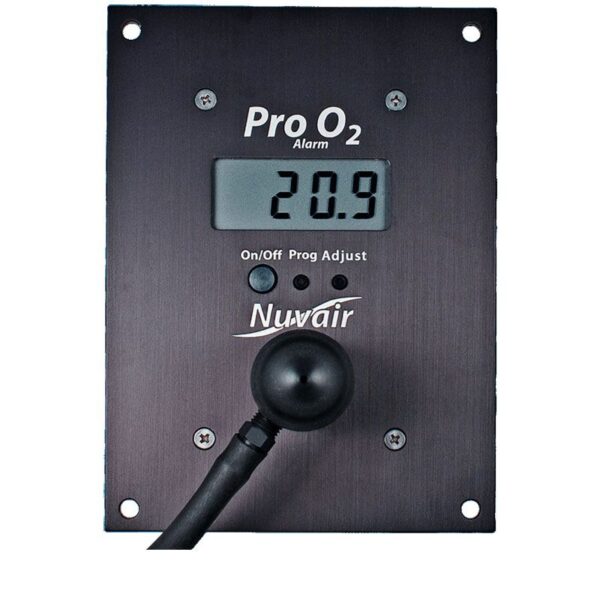

NUVAIR – Pro O2 Alarm Analyzer – Panel Mount
Designed for installation on a control panel or other flat surface, the Nuvair Pro O2 panel mount alarm analyzer measures oxygen levels in breathing gas mixtures. Audible and visual alarms for low and high oxygen content can be set by the user. If the alarm sounds, the analog output can activate an optional relay that shuts down compressors automatically, sounds an alarm, or activates backup systems. Three power options available.
Accurate, stable, and easy to use, the panel mounted Nuvair Pro O2 Alarm Analyzer has two audible and visible alarms that can be set for high and low oxygen content. When the alarm sounds, the analog output activates an optional relay that shuts down compressor automatically, sounds a remote alarm, or switches a surface-supplied diver’s breathing gas to an emergency backup system. Designed for installation on a control panel or other flat surface, Nuvair Pro O2 Alarm analyzers are built and tested in-house and come ready to use. Designed for in-line measurement of oxygen in a mixed gas, it is compatible with nitrox, heliox, and trimix.
PLEASE NOTE: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Inaccurate gas analysis can lead to serious personal injury or death. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder, or the flow from a regulator. The flow rate of gas must equal 1-5 L/min. To produce this flow, a Flow Restrictor and Regulator may be required.
Features
- On/Off switch
- Low battery warning indicator
- Easy calibration
- User-replaceable battery and sensor
- Audible alarm sounds when user-defined low or high O2 percentage is reached
- 4-20 mA analog output for external devices
- Analog output can activate optional relay to automatically shutdown compressor when alarm activates
- Fast response, thermally compensated sensor
- Completely sealed, water resistant housing
- Automatic calibration
- Specifically designed to test breathing gases
Power Options
- 9-volt battery (SKU 9612-B)
- Rechargeable lithium battery (SKU 9612-LB)
- Wall plug-in [international] (SKU 9612-E)
Replacement Sensor
- Oxygen Sensor Replacement 9507M
Specifications
| Display Accuracy | ±1% |
|---|---|
| Sensor Type | Electrochemical |
| Expected Sensor Life | 36 months in air at 25°C (77°F) and 50% rh |
| Range | 0-100% Oxygen |
| Response Time | <6 seconds for 90% of final value |
| Operating Temperature | 32-104°F (0-40°C) |
| Storage Temperature | 32-122°F (0-50°C) |
| Operating Humidity | up to 100% rh |
| Power | 9-volt battery, wall plug-in or rechargeable lithium battery |
| Dimensions (L x W x H) |
5.5 x 4 x 2 in (14 x 10.1 x 5 cm) |
